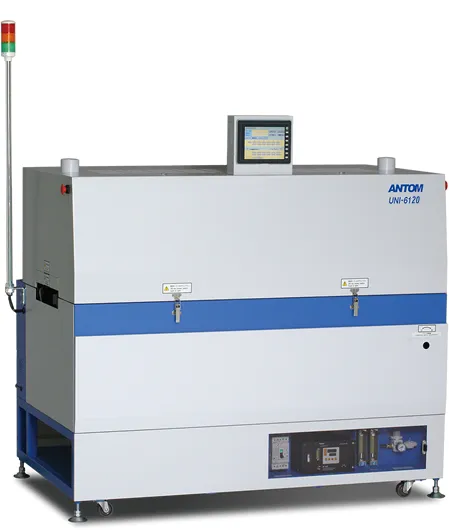

Small reflow oven (N2 compatible) UNI-6120

Small reflow oven (N2 compatible) UNI-6120

Small reflow oven (N2 compatible) UNI-6120

Small reflow oven (N2 compatible) UNI-6120
Antom Corporation Reflow Oven PDF Catalog Download
Download the PDF version of Antom Corporation's company profile

Basic specifications
Number of zones 6 heating zones / 1 cooling zone
Heating method Upper and lower hot air + far infrared heating method
Maximum set temperature Top 350℃ / Bottom 350℃
Effective board width 50~200mm
Transport method (selectable) Pin chain transportation / Mesh conveyance
Conveyance speed 0.1-0.5m/min
Effective part height Top 10mm / Bottom 10mm
Supported languages Japanese, English, Chinese, Korean
PC outlet 1 (100V)
PCB mounting space 4mm
Path line 900±20mm
Input power AC200V 3φ 12kVA 35A (peak power suppression mode)
Power consumption during stable operation Approx. 4kW/h
Device dimensions *Numbers in parentheses are for mesh transport L1,590(1,890)×D960×H1,330mm
Device weight 550kg
Options
Automatic width adjustment mechanism
Overheat prevention device
Substrate drop sensor
Easy maintenance flux recovery
UPS (uninterruptible power supply)
Oxygen concentration controller
N2 supply to all zones
Oxygen concentration all zone sampling
Labyrinth up/down mechanism
Low oxygen concentration specification (100ppm or less)
Extension of entrance/exit conveyors
Circulation fan stop detection
Hood interlock
Reflow checker (profile measurement unit)
Various conveyors (transport conveyor, cooling conveyor, loader, unloader)
Various customizations
