Small reflow oven (atmospheric reflow), wide-width compatible UNI-5031

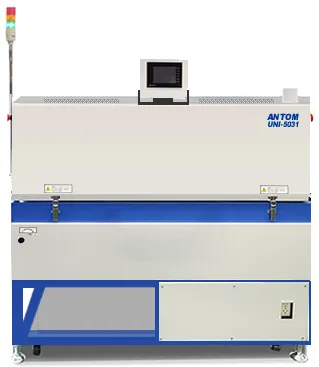

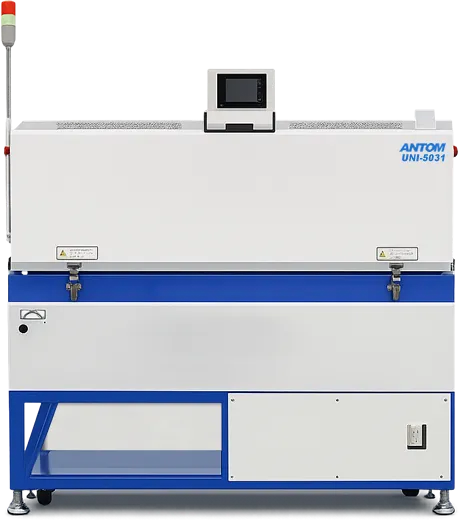

UNI-5031 Compact Wide-Format Reflow System | High-Throughput Multi-Lane Processing for Evaluation, Screening, and Curing
UNI-5031 is a compact atmospheric reflow oven with an expanded conveyor width for wide-format processing.
Featuring a mesh conveyor, it supports multi-lane (parallel) transport to achieve high throughput even in evaluation and testing applications.
Its 5 heating zone configuration enables thermal profile reproducibility comparable to mass production lines, making it suitable for a wide range of processes—from reliability testing such as burn-in and screening to curing of underfill and adhesives, as well as drying.
Designed to overcome the limitation of insufficient throughput in evaluation environments, the UNI-5031 delivers high-capacity processing in a compact conveyor system.
Basic specifications
| Number of zones | 5 heating zones |
| Heating method | Top hot air + far-infrared heating / Bottom far-infrared heating system |
| Maximum set temperature | Top 320℃ / Bottom 350℃ |
| Board effective width | 50～310mm |
| Conveying method (selectable) | Pin chain conveying / Mesh conveying |
| Conveying speed | 0.1～0.5m/min |
| Part effective height | Top surface 15mm / Bottom surface 15mm |
| Oxygen concentration meter | Standard equipment |
| Supported languages | Japanese, English, Chinese, Korean |
| PC outlet | 1 piece (100V) |
| PCB mounting space (pin chain transport) | 4mm |
| Pass line | 900±20mm |
| Input power | AC200V 3φ 13kVA 38A (Peak power suppression mode) |
| Stable power consumption | Approximately 4kW/h |
| Equipment dimensions * (Numbers in parentheses indicate dimensions when using mesh conveying) | L1,290(1,590)×D1,000×H1,330mm |
| Equipment weight | 450kg |
Option
| Overheating Prevention Device |
| Substrate Drop Sensor |
| Simple maintenance-type flux recovery |
| UPS (Uninterruptible Power Supply) |
| Inlet/outlet conveyor extension |
| Circulation fan stop detection |
| Hood interlock |
| Reflow checker (profile measurement unit) |
| Various conveyors (conveyor, cooling conveyor, loader, unloader) |
| Various Customization Options Available |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of UNI-5031 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
