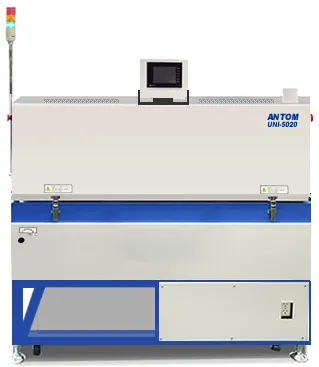

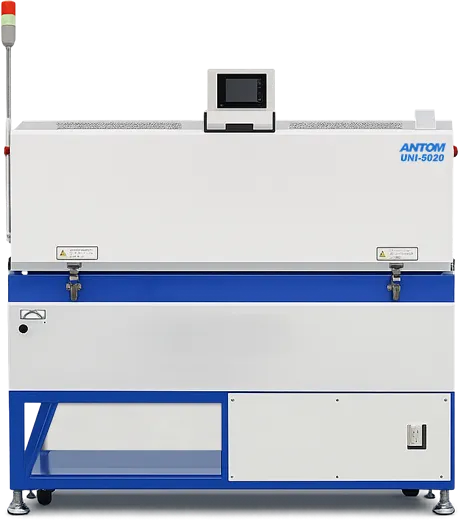

Small reflow oven (atmosphere only) UNI-5020

Small reflow oven (atmosphere only) UNI-5020

Small reflow oven (atmosphere only) UNI-5020

Small reflow oven (atmosphere only) UNI-5020
Antom Corporation Reflow Oven PDF Catalog Download
Download the PDF version of Antom Corporation's company profile

Basic specifications
Number of zones 5 heating zones
Heating method Upper hot air + far infrared heating/lower far infrared heating method
Maximum set temperature Top 320℃ / Bottom 350℃
Effective board width 50~200mm
Transport method (selectable) Pin chain transportation / Mesh conveyance
Conveyance speed 0.1-0.5m/min
Effective part height Top 15mm / Bottom 15mm
Supported languages Japanese, English
PC outlet 1 (100V)
PCB mounting space 4mm
Pass line 900±20mm
Input power AC200V 3φ 11kVA 32A (peak power suppression mode)
Stable power consumption About 3kW/h
Equipment dimensions *The numbers in parentheses are for mesh transport L1,290(1,590)×D1,000×H1,330mm
Device weight 400kg
Options
Overheating prevention mechanism
Substrate drop sensor
Easy maintenance flux recovery
UPS (Uninterruptible Power Supply)
Extension of entrance and exit conveyors
Circulation fan stop detection
Hood interlock
Reflow checker (profile measurement unit)
Various conveyors (transport conveyor, cooling conveyor, loader, unloader)
Various customizations available
