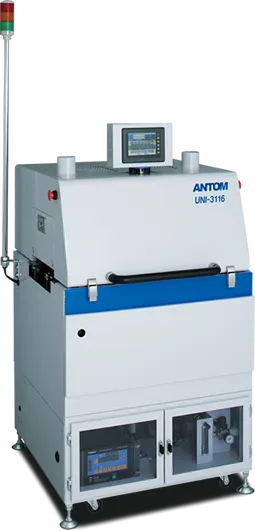

Ultra-compact reflow oven (N2 compatible) UNI-3116

Small reflow oven (N2 compatible) UNI-3116

Ultra-compact reflow oven (N2 compatible) UNI-3116

Ultra-compact reflow oven (N2 compatible) UNI-3116
Antom Corporation Reflow Oven PDF Catalog Download
Download the PDF version of Antom Corporation's company profile

Basic specifications
Number of zones 3 heating zones / 1 cooling zone
Heating method Upper hot air + far infrared heating/lower far infrared heating method
Maximum set temperature Top 320℃ / Bottom 350℃
Effective board width 50~160mm
Transport method (selectable) Pin chain transportation / Mesh transport
Transport speed 0.03~0.15m/min
Part effective height Top surface 10mm / Bottom surface 10mm
Oxygen concentration meter Standard equipped
Supported languages Japanese/English/Chinese/Korean
PC outlet 1 (100V)
PCB mounting space 4mm
Pass line 900±20mm
Input power AC200V 3φ 6kVA 18A (peak power suppression mode)
Stable power consumption About 2kW/h
Equipment dimensions *The numbers in parentheses are for mesh transport L780(1,000)×D795×H1,285mm
Device weight 140kg

Options
Overheating prevention device
Board drop sensor
UPS (Uninterruptible Power Supply)
Oxygen Concentration Controller
N2 All Zone Supply
Oxygen Concentration All Zone Sampling
Low Oxygen Concentration Specification (100ppm or less)
Extension of Entrance/Exit Conveyor
Circulation fan stop detection
Hood interlock
Reflow checker (profile measurement unit)
Various conveyors (transport conveyor, cooling conveyor, loader, unloader)
Various customizations available
