Air-only reflow oven (6 zones, 460mm) SOLSYS-6046
SOLSYS-6046 Atmospheric Reflow Oven (6-Zone, 460 mm) | Cost-Effective Production for Large PCBs

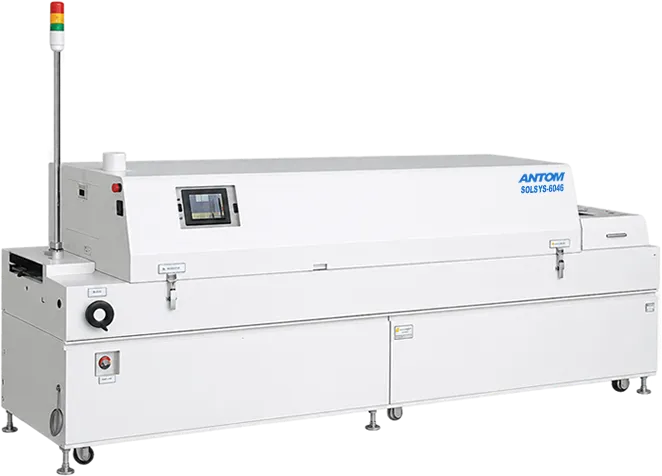

The SOLSYS-6046 is a wide-type, air-only, 6-zone reflow oven that accommodates a transport width of 460mm. Despite its compact design with a total length of 2,900mm, it achieves profile reproduction equivalent to that of mass production lines. It supports mass production of large and multi-sided substrates and can be applied to a wide range of heating processes, including not only reflow but also drying and long-term heating (curing). By not using N2, it keeps running costs down while being a highly practical model that can handle mass production of large workpieces, and it has been adopted both domestically and internationally.
Basic specifications
| Number of zones | 6 heating zones |
| Heating method | Top hot air + far-infrared heating / Bottom far-infrared heating system |
| Maximum set temperature | Top 320℃ / Bottom 350℃ |
| Board effective width | 50～460mm |
| Conveying method (selectable) | Pin chain conveying / Mesh conveying |
| Conveying speed | 0.3～1.5m/min |
| Part effective height | Top surface 15mm / Bottom surface 15mm |
| Oxygen concentration meter | Standard equipment |
| Supported languages | Japanese, English, Chinese, Korean |
| PC outlet | 1 piece (100V) |
| PCB mounting space (pin chain transport) | 4mm |
| Pass line | 900±20mm |
| Input power | AC200V 3φ 29kVA 84A (Peak power suppression mode) |
| Stable power consumption | Approximately 7kW/h |
| Equipment dimensions * (Numbers in parentheses indicate dimensions when using mesh conveying) | L2,900×D1,055×H1,410mm |
| Equipment weight | 1,000kg |
Option
| Automatic width adjustment mechanism |
| Overheating Prevention Device |
| Substrate Drop Sensor |
| Lift-Up Warpage Prevention Mechanism |
| Simple maintenance-type flux recovery |
| UPS (Uninterruptible Power Supply) |
| Inlet/outlet conveyor extension |
| Circulation fan stop detection |
| Hood interlock |
| Reflow checker (profile measurement unit) |
| Various conveyors (conveyor, cooling conveyor, loader, unloader) |
| Various Customization Options Available |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of SOLSYS-6046 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
