Reflow Checker RCX-1 (RCM-S)

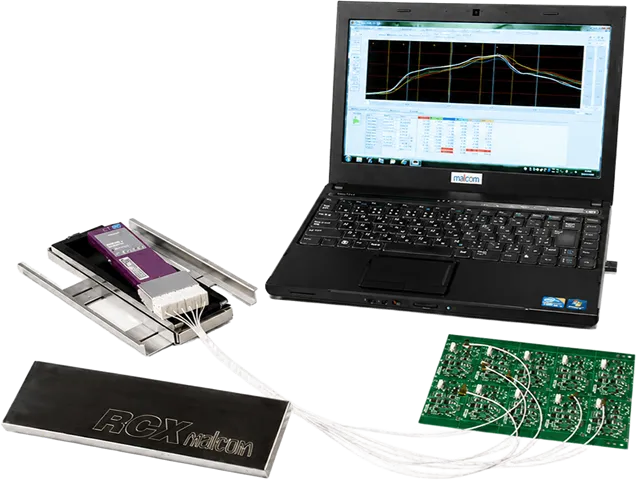

RCX-1 Reflow Profiler (RCM-S) | Modular Process Control System
The RCX-1 (RCM-S) is a modular reflow checker that provides multifaceted visualization of the reflow process. Based on a 6-channel temperature measurement core unit, various measurement units such as 12-channel temperature measurement, oxygen concentration, airflow velocity, vibration, and camera can be added. It allows for the unified management of not only temperature profiles but also all factors affecting reflow quality. Dedicated software displays various data on a single screen, streamlining profile creation and condition determination. Antom also provides optimal proposals and support for combinations with equipment.
Basic specifications
| Model name | RCX-1（RCM-S）（Malcom） |
| Temperature measurement range | 0～500℃ |
| Measurement point | 1～6Point |
| External dimensions | Main unit: L170 x W55 x H18mm (Weight: 200g) Heat-resistant case: L245 x W65 x D25mm (Weight: 370g) |
| Power supply | Lithium-ion rechargeable battery |
| Mass | Approximately 570g (including heat-resistant case and batteries) |
| PC data output method | USB (miniB) or Bluetooth |
Accessories
| Cooling unit |
| Temperature analysis program（TMR-1） |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of RCX-1(RCM-S) from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
