Reflow checker (slim type) RCP-200

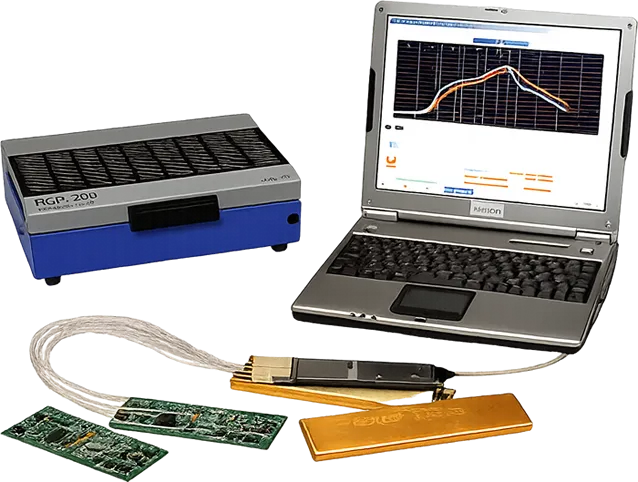

RCP-200 Reflow Profiler (6-Channel, Slim) | Thermal Profile Measurement
The RCP-200 is a compact, slim reflow checker that visualizes temperature profiles in the reflow process. Its 6-channel temperature measurement accurately captures the temperature distribution on the workpiece, contributing to the optimization and reproducibility of the reflow process. Easy data acquisition via USB connection allows for smooth operation from measurement to analysis. Antom offers total solutions combining reflow equipment and RCP-200 support, providing consistent assistance from measurement to process optimization.
Basic specifications
| Model name | RCP-200（Malcom） |
| Temperature measurement range | 0～300℃ |
| Measurement point | 1～6Point |
| External dimensions | L200×D50×H15（mm） |
| Power supply | Lithium-ion rechargeable battery |
| Mass | Approximately 400g |
| PC data output method | USB connection |
Accessories
| Cooling unit |
| Temperature analysis program（TMR-1） |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of RCP-200 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
