Wide-range compatible mass-production reflow oven EXSOL-8246
EXSOL-8246 Wide Production Reflow Oven (460 mm) | Large PCB Processing in a Space-Saving Design

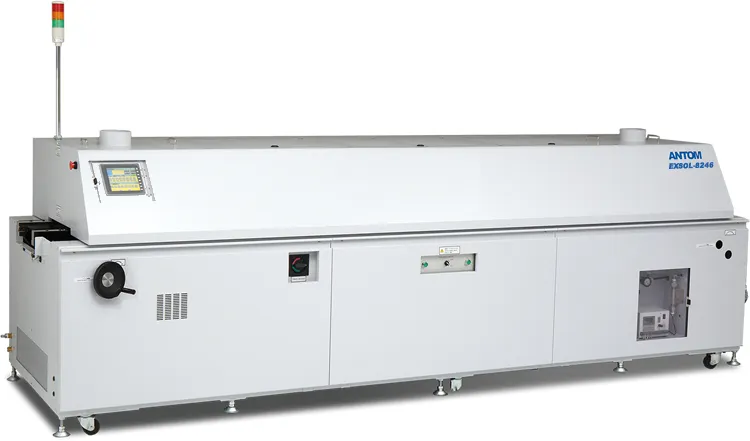

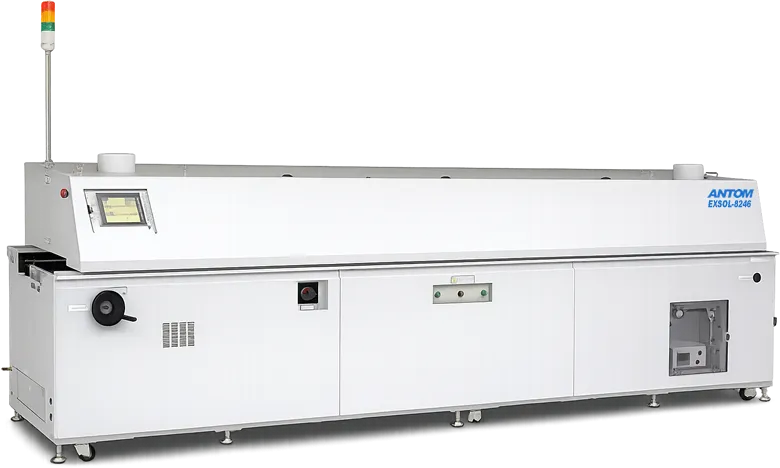

A wide-format production reflow oven with a 460 mm conveyor width, designed for high-volume manufacturing.
Despite its compact 4.1-meter footprint, its optimized zone configuration ensures stable and reproducible thermal profiles.
Suitable for mass production of large PCBs and panelized assemblies, it enables the construction of high-quality SMT lines even in space-constrained environments.
Basic specifications
| Number of zones | 8 heating zones / 2 cooling zone |
| Heating method | Top hot air + far-infrared heating / Bottom far-infrared heating system |
| Maximum set temperature | Top 320℃ / Bottom 350℃ |
| Board effective width | 50～460mm |
| Conveying method (selectable) | Pin chain conveying / Mesh conveying |
| Conveying speed | 0.3～1.5m/min |
| Part effective height | Top surface 10mm / Bottom surface 10mm |
| Oxygen concentration meter | Standard equipment |
| Simple maintenance-type flux recovery | Standard equipment |
| Supported languages | Japanese, English, Chinese, Korean |
| PC outlet | 1 piece (100V) |
| PCB mounting space (pin chain transport) | 4mm |
| Pass line | 900±20mm |
| Input power | AC200V 3φ 38kVA 110A (Peak power suppression mode) |
| Stable power consumption | Approximately 10kW/h |
| Equipment dimensions * (Numbers in parentheses indicate dimensions when using mesh conveying) | L4,110×D1,320×H1,410mm |
| Equipment weight | 1,850kg |
Option
| Automatic width adjustment mechanism |
| Overheating Prevention Device |
| Substrate Drop Sensor |
| Lift-Up Warpage Prevention Mechanism |
| UPS (Uninterruptible Power Supply) |
| Oxygen Concentration Controller |
| N2 All-Zone Supply |
| Oxygen Concentration All-Zone Sampling |
| Low oxygen concentration specification (100 ppm or less) |
| Inlet/outlet conveyor extension |
| Circulation fan stop detection |
| Hood interlock |
| Reflow checker (profile measurement unit) |
| Various conveyors (conveyor, cooling conveyor, loader, unloader) |
| Various Customization Options Available |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of EXSOL-8246 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
