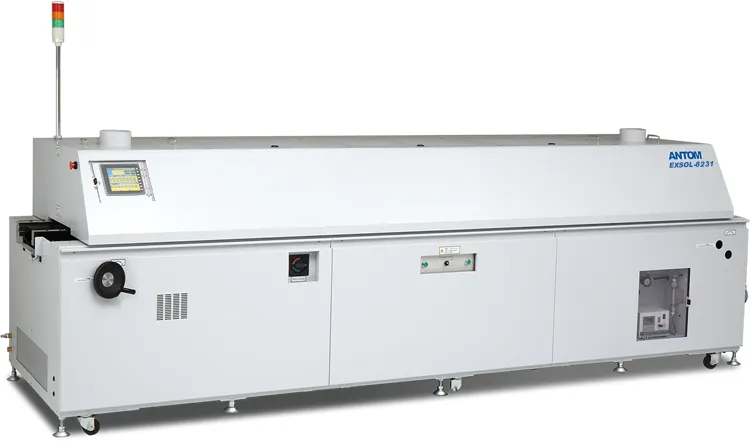

Medium-sized reflow oven (N2 compatible) EXSOL-8231N
Medium-sized reflow oven (N2 compatible) EXSOL-8231
Medium-sized reflow oven (N2 compatible) EXSOL-8231
Basic specifications
| Number of zones | 8 heating zones / 2 cooling zones |
|---|---|
| Heating method | Upper hot air + far infrared heating/lower far infrared heating method |
| Maximum set temperature | Top 320℃ / Bottom 350℃ |
| Effective board width | 50～310mm |
| Transport method (selectable) | Pin chain transportation / Mesh transport |
| Transport speed | 0.3～1.5m/min |
| Part effective height | Top surface 10mm / Bottom surface 10mm |
| Oxygen concentration meter | Standard equipped |
| Flux recovery | Standard (easy maintenance type) |
| Supported languages | Japanese, English, Chinese, Korean |
| PC outlet | 1 (100V) |
| Board placement space | 4mm |
| Pass line | 900+20,-15mm |
| Input power | AC200V 3φ 24kVA 70A (peak power suppression mode) |
| Stable power consumption | About 8kW/h |
| Device dimensions | L4,110×D1,320×H1,410mm |
| Device weight | 1,750kg |
Options
| Automatic width adjustment mechanism |
| Overheating prevention mechanism |
| Board drop sensor |
| Elevating type warpage prevention mechanism |
| UPS (uninterruptible power supply) |
| Oxygen concentration controller |
| Oxygen concentration all zone sampling |
| Labyrinth up/down mechanism |
| Bottom circulation |
| Low oxygen concentration specification (100ppm or less) |
| Circulation fan stop detection |
| Hood interlock |
| Reflow checker (profile measurement unit) |
| Various conveyors (transport conveyor, cooling conveyor, loader, unloader) |
| Various customizations available |
