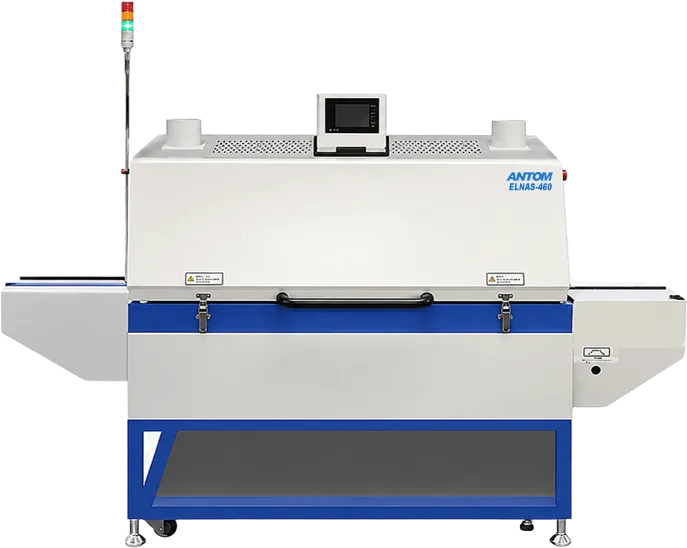

Moisture-proof material drying oven (HumiSeal compatible, 460mm) ELNAS-460
ELNAS-460 High-Clearance Conformal Coating Drying Oven | For Large PCBs and HumiSeal Applications
The ELNAS-460 is a drying oven for moisture-proofing agents (such as HumiSeal) that accommodates a transport width of 460mm. Its high clearance design of 100mm above and below allows for the transport and drying of large circuit boards with capacitors and other components mounted directly. Even in the final stage of the moisture-proofing process, it ensures a stable drying process without being constrained by the height or size of the workpiece. Low-temperature heating up to a maximum of 200°C maintains material properties while ensuring uniform drying, making it a highly reliable model with a wide track record, primarily in industrial circuit boards.
Basic specifications
| Number of zones | 5 heating zones |
| Heating method | Top hot air + far-infrared heating system |
| Maximum set temperature | Top 200℃ |
| Board effective width | 50～460mm |
| Conveying method (selectable) | Pin chain conveying / Mesh conveying |
| Conveying speed | 0.5～2.0m/min |
| Part effective height | Top surface 100mm / Bottom surface 100mm |
| Oxygen concentration meter | Standard equipment |
| Supported languages | Japanese, English, Chinese, Korean |
| PC outlet | 1 piece (100V) |
| PCB mounting space (pin chain transport) | 4mm |
| Pass line | 900±20mm |
| Input power | AC200V 3φ 16kVA 47A (Peak power suppression mode) |
| Stable power consumption | Approximately 3kW/h |
| Equipment dimensions * (Numbers in parentheses indicate dimensions when using mesh conveying) | L2,000×D960×H1,400mm |
| Equipment weight | 340kg |
Option
| Automatic width adjustment mechanism |
| lower heater |
| Overheating Prevention Device |
| Simple maintenance-type flux recovery |
| UPS (Uninterruptible Power Supply) |
| Inlet/outlet conveyor extension |
| Circulation fan stop detection |
| Hood interlock |
| Reflow checker (profile measurement unit) |
| Various conveyors (conveyor, cooling conveyor, loader, unloader) |
| Various Customization Options Available |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of ELNAS-460 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
