Cooling conveyor ATM-ECC-600
ATM-ECC-600 Cooling Conveyor (Post-Reflow Process) | Adjustable Airflow and Customizable Design

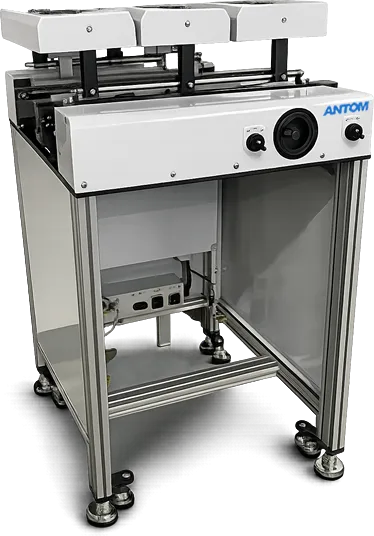

The ATM-ECC-600 is an external cooling conveyor designed for use at the outlet of a reflow oven. It comes standard with three cooling fans, and the airflow can be adjusted via a speed controller. Optimizing the cooling speed contributes to stabilizing solder joint quality and controlling the temperature drop profile. Despite its compact 600mm length, it supports customization of the number of fans and device length. This cooling unit offers flexible optimization of cooling quality in post-reflow processes.
Basic specifications
| Model name | ATM-ECC-600 |
| Board effective width | 50～250mm |
| Pass line | 900mm（＋15/-15） |
| Power specifications | AC100V |
| Belt type | Pin chain conveying / Habasit flat belt |
| Operation method | Button switch |
| Equipment dimensions | L600×H900×D500mm |
| Weight | 70kg |
Option
| Automatic width conveyor adjustment |
| Signal light |
| Supports large workpiece handling (MAX 460mm) |
| Supports various safety specifications |
| Workpiece hold stopper |
| Conveyor speed controller |
| Various customization options available |
In addition to the specifications and options listed, we can also customize the product to suit your application and process conditions.
Please feel free to contact us regarding special specifications and individual requirements. You can also download a PDF catalog summarizing the detailed specifications of ATM-ECC-600 from the link below.
If it’s difficult to make a decision based solely on the specifications, we will propose the most suitable heating process without being limited by the listed specifications. Please feel free to contact us using the form below.
